IP Based Fingerprint Access Control and Time Attendance
SKU: TF1700.- IP65 rated waterproof and dustproof structure
- Optional 8,000 Fingerprint
- Network interface by TCP/IP or RS485
- Full Access Control Features
Product Description
IP Based Fingerprint Access Control and Time Attendance

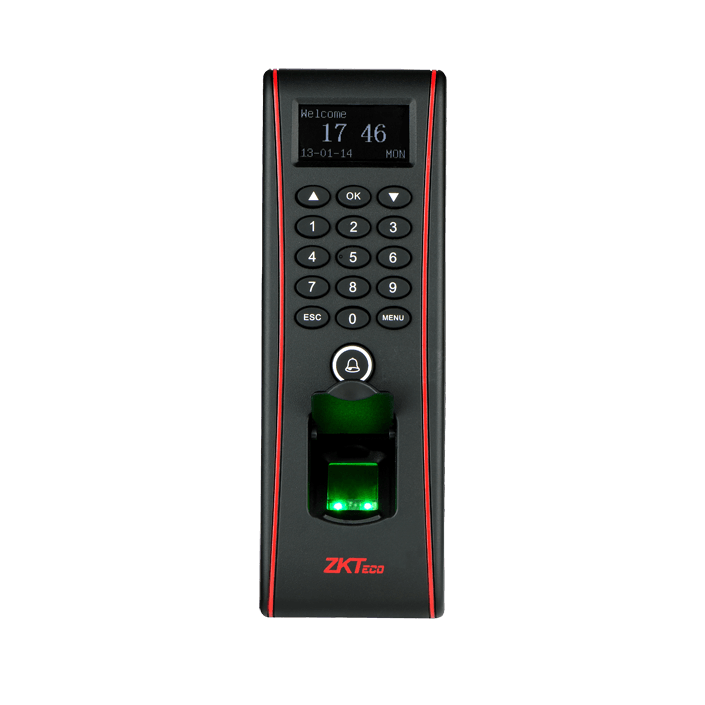

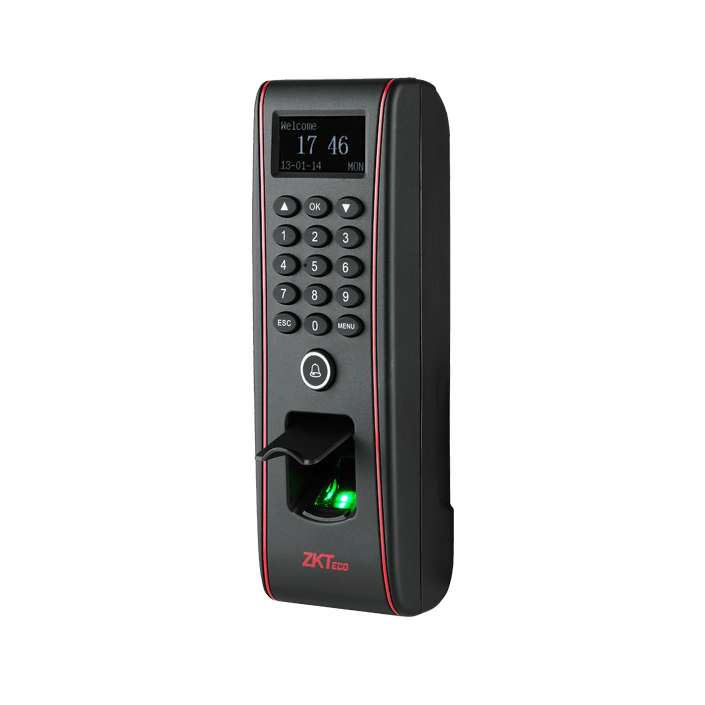

TF1700 is one of the world’s smallest Ethernet connection-based fingerprint terminals, used for access control and time attendance features, with IP65 waterproof housing.

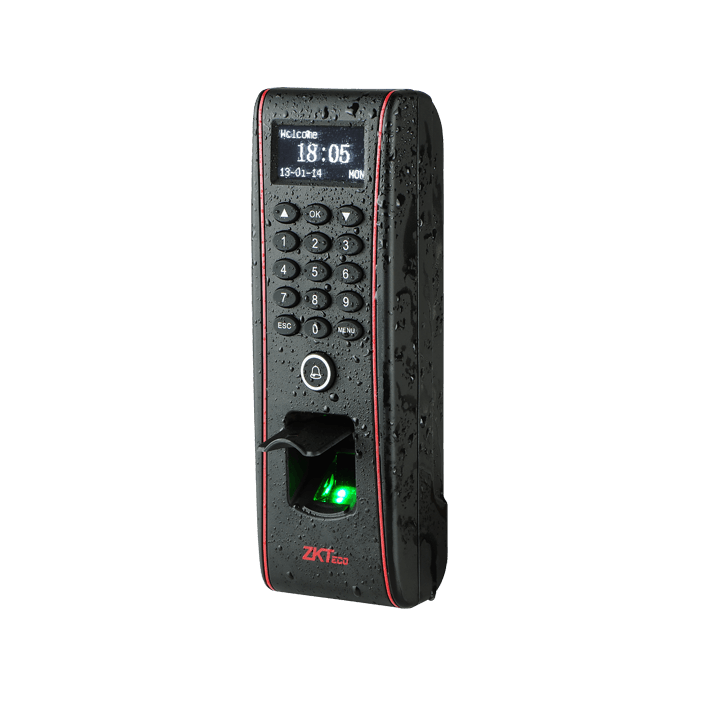

With its IP65 rated rugged waterproof and dustproof structure, TF1700 offers extra durability in harsh conditions such as outdoor environments. It is specially designed for standalone applications such as house, office, shop, garage, factory and others.

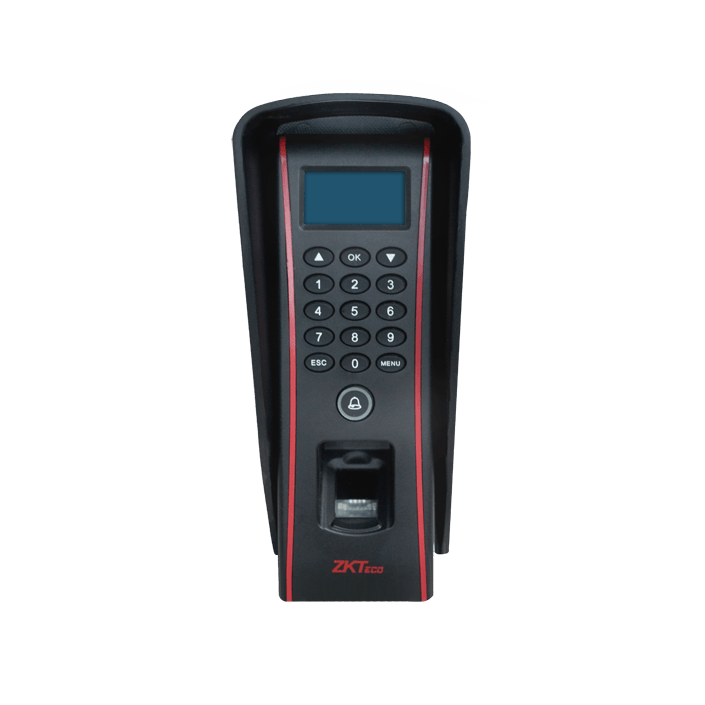

The 2013 version of TF1700 is equipped with a sensor cover to protect the optical reader and updated with new firmware that supports ZKAccess3.5 management software which has versatile features and powerful functions.
 | Rugged Structure for Outdoor Installation and Extra DurabilityIP65 rated waterproof and dustproof structure |  | Slim and Elegant DesignOne of the world’s smallest fingerprint terminals.Sleek and slim design for narrow spaces. |
 | Fast and Accurate Fingerprint Algorithm1 touch a-second user recognition. Store 3,000 fingerprint templates, 30,000 cards and 100,000 transactions. |  | Full Access Control FeaturesAnti-passback. Access control interface for 3rd party electric lock, door sensor, exit button, alarm and doorbell |
 | Easy Installation and ConnectivityWiegand input & output. Network interface by TCP/IP or RS485 |  | Easy Operation and ManagementWork without computer. OLED, buzzer, 3×5 keypads. Built-in keypad and RF card reader for multi-modal authentication(Fingerprint/PIN/Card) |
Technical Specifications | |
Fingerprint Sensor | Infrared detection fingerprint sensor |
Algorithm Version | ZK Finger 10.0 |
Communication | TCP/IP, RS485, USB Host |
Fingerprint Capacity | 3,000 Fingerprints(8,000 Optional) |
Card Capacity | 30,000 Cards |
Log Capacity | 100,000 Transactions |
RF Card | EM(standard)/Mifare(optional) |
Authentication | Finger/PIN/Card |
Wiegand Signal | Wiegand input&output |
Ingress Protection Rate | IP65 |
Display | 128 x 64 OLED |
Keypad | 3 x 5 keypads & doorbell |
Sound and Interface | Buzzer and multi-color LED |
Operating Voltage | 12VDC 3A |
Operating Temperature | -10 °C~50 °C (14°F ~ 122°F) |
Dimension | 62.5mm×185mm×41.5mm (W×H×D) |
