Multi-Bio Time Attendance Terminal
SKU: iFace302.- Multi-Biometric: FACE, FP, Card and PWD
- Multi-model communications
- Big capacity
Product Description
Multi-Bio Time Attendance Terminal
iFace202 multi-biometric identification time attendance and access control terminal adopts ZKTeco’s latest platform with ZKFace algorithm and large capacity memory. With the upgraded hardware, it can now store up to 1200 face templates.

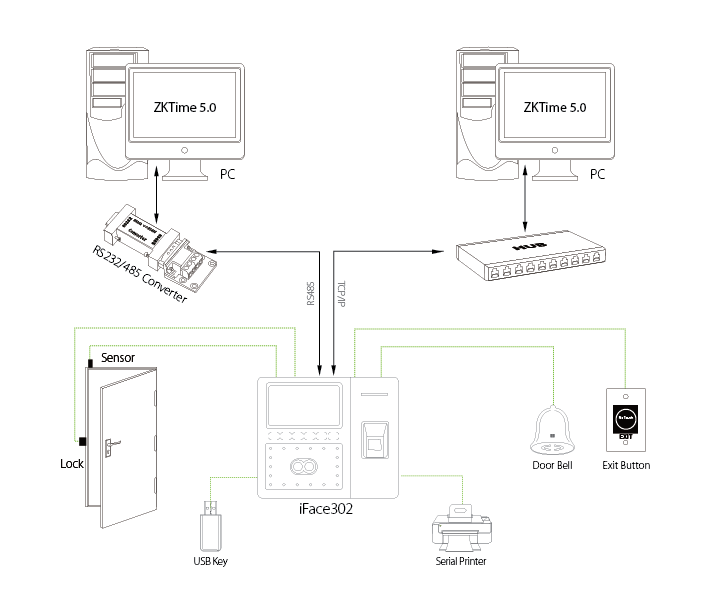

It Integrated with 800MHz high speed ZK Multi-Bio processor and high definition infrared camera enables user identification in the dark environment. Face and fingerprint multi-biometric identification methods make it more applicable. Multi-model communications consisting of RS232/485, TCP/IP and Wi-Fi/GPRS (optional) allow an extremely easy data management. Optional built-in 2000 mAh battery eliminates the trouble of power failure.
• Identification methods include Face, Fingerprint/RFID Password
• Elegant ergonomic design
• 4.3’’ TFT touch screen is user-friendly and very intuitive
• 6 user-defined function keys
• Contact relays for door access control (wires to door strike or 3rd party panel)
• Web server management software via IE browser
• Optional extendable scheduled-bell
• Infra-red optical system enables user-identification in poorly lit environments
• Optional built-in battery backup provides approx 4 hours continuous operation
• Optional built-in wireless Wi-Fi or GPRS for wireless communication
• Built-in contacts for 3rd party electric lock, door sensor, alarm, exit button, or bell.
• Wiegand Output for connections to 3rd party access control panels
Technical Specifications | |
| Display | 4.3’’ TFT Touch Screen |
| Face capacity | 1200 (1:N) |
| Fingerprint capacity | 2000 |
| ID Card capacity | 10,000 |
| Logs capacity | 100,000 |
| Algorithm Version | ZKFace VX 7.0 & ZKFinger VX10.0 |
| 2000mAh backup battery | Optional |
| Communication | TCP/IP, RS232/485 |
| USB-HOST | Two USB-Host |
| Wireless Wi-Fi | Optional |
| Time attendance Standard functions | ID Card(Optional), Automatic Status Switch, Self-Service Query, Work Code, T9 input, 9 digit user ID, DST, Photo-ID, Scheduled-Bell |
| Access control interfaces for | 3rd Party Electric Lock, Door Sensor, Exit Button |
| Wiegand Signal | Output |
| Optional functions | Mifare Card, Short Massage, GPRS, Wi-Fi, 3G, ADMS |
| Power supply | DC 12V 3A |
| Verification Speed | ≤2 sec |
| Operating temp | 0 °C- 45 °C |
| Operating Humidity | 20%-80% |
| Dimension(W×H×D) | 193.6 * 146.8 * 111 mm |
| Gross Weight | 1.49 kg |
Multi-biometric Identification Time Attendance and Access Control Terminal
