When the wireless router connect to SUNHANS wireless signal amplifier, the signal coverage range is very large, on the second floor of the signal becomes very strong.

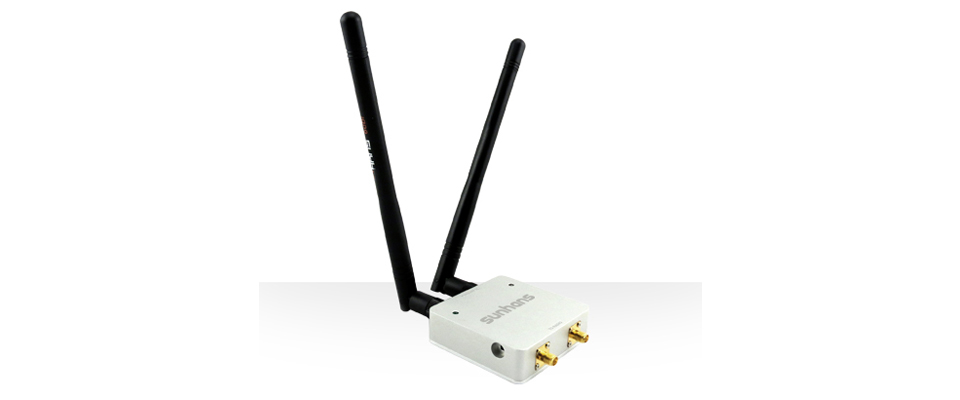

• Model Name: SH24Gi1000-D2
• Operating Range : 2400~2500 MHz
• Supported standards: IEEE 802.11b/g/n (802.11n Draft 2.0), 2Tx2R
• Operation mode: Bi-directional, half-duplex, time division duplex, MIMO
• Connector type: To radio SMA female (hole inside). To antenna RP-SMA male (pin inside)
• Output power: 1000 mW (30 dBm)
• Input power: 0 ~ 20 dBm
• Transmit gain: 15 – 18 dB
• Receiver gain: 11-14 dB
• Noise figure: ≤3.5 dB typical
• Frequency response: ±1 dB over operating range
• Power adapter: 12V/2A DC, 100~240V
• Operating temperature: -20°C to +70°C
• Operating humidity: Up to 90% relative humidity
• Material: Cast aluminum
• LED light: Power status LED and activity status LED
• Booster size: 8.5 x 7 x 2 cm
• Booster weight: 178 g
• Package size: 21.3 x 15 x 6 cm
• Package weight: 500 g
• Package contents: 1 x SH24Gi1000-D2 / 2 x RG316 cable with SMA connectors (20cm) / 2 x 6dBi omni antenna / 1 x power supply / 1 x user manual
