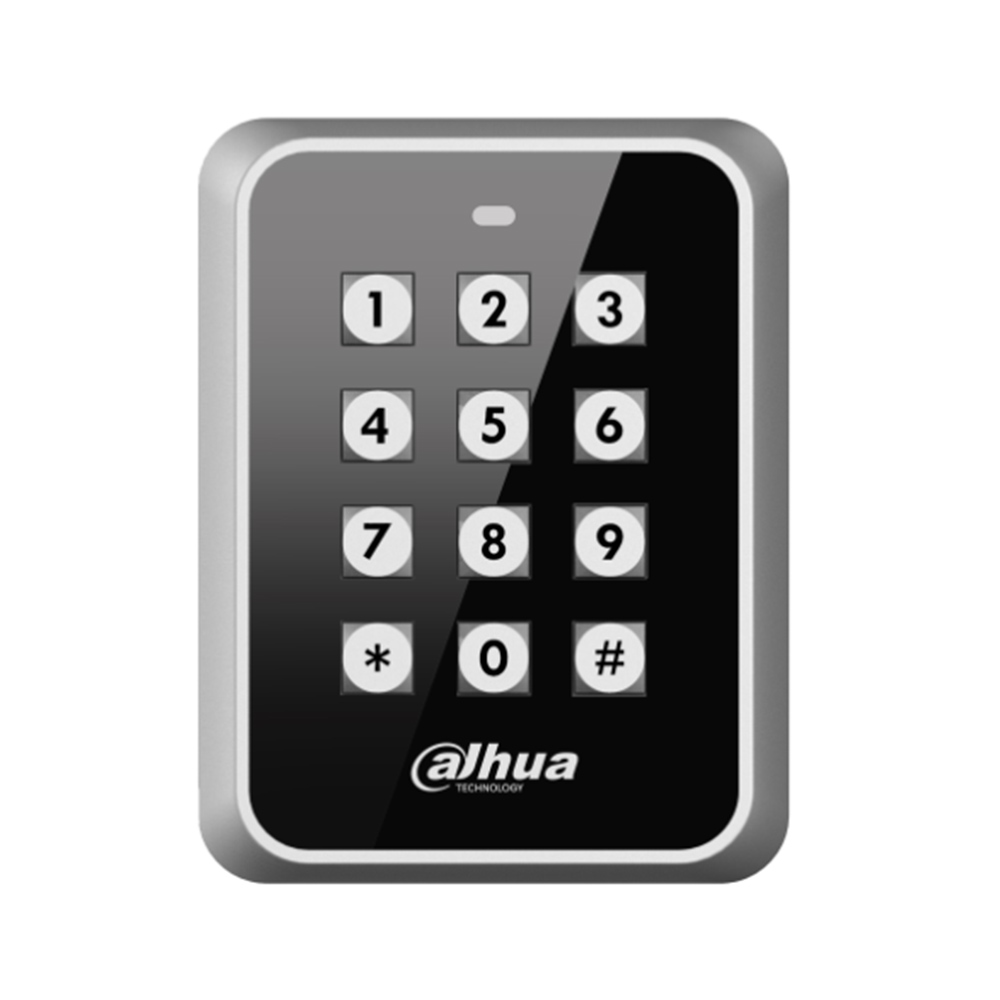

RFID Reader ASR1101M
SKU: ASR1101M.>RS-485 or Wiegand protocol
>Default IC (Mifare) card (“-D” means ID EM card)
>Support card, password
>All-metal buttons with blue backlight
>Watch dog function ensure device free from halting
>Beep and indicator
>Surface mounted installation
>Tamper alarm and vandal-proof
Product Description
| Model | ASR1101M/ ASR1101M-D | ASR1001M/ASR1001M-D |
| System | ||
| Main Processor | 8 Bit | |
| Read | ||
| Read Format | 13.56MHz(Mifare)/125KHz(“-D” EM, Optional) | |
| Read Range | 3-5cm (max.) | |
| Response time | <0.1s | |
| Function | ||
| Tamper Alarm | Yes | |
| Interface | ||
| To Controller | RS485 | Wiegand |
| General | ||
| Keypad | 12Key(0-9,*,#), number key 5 is a braille button | |
| LCD Display | Blue backlight | |
| Beep Tone | Buzzer | |
| Ingress protection | IK08, IP55 | |
| Power Supply | 9-15VDC/100mA | |
| Working Environment | -30℃-+60℃ | |
| Working Humidity | ≤95% | |
| Dimension(W×D×H) | 110mm*85mm*26mm | |
| Weight | 0.5Kg | |
