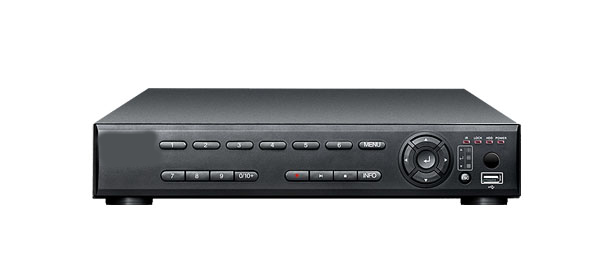

H.264 Digital video recoder
SKU: 7016C.- Supply BUILT-IN DDNS domain name.
- Powerful CMS.
- Support 16 users network view simultaneously.
- 4Ch DVR support D1 Real-time recording, 8/16Ch DVR support D1 non-Real-time recording,each channel is 6 frames.
- Support five OS for mobile surveillance.
- Support 16 users network view simultaneously.
- support 2000G HDD.
Product Description
| Model | 7016D |
| Compression | H.264 |
| Video format | NTSC / PAL |
| Video input | 16×BNC(1.0Vp-p, 75Ω) |
| Video output | 1×BNC(1.0Vp-p, 75Ω); VGA; SPOT ;YPbPr |
| Output resolution | YPbPr:1920×1080 |
| D1 record frame rate | 100fps(PAL)/120fps(NTSC) |
| CIF record frame rate | 400fps(PAL)/480fps(NTSC) |
| D1 playback frame rate | 100fps(PAL)/120fps(NTSC) |
| CIF playback frame rate | 400fps(PAL)/480fps(NTSC) |
| Frame rate of network transmission | ＞10 fps /channel @ CIF resolution |
| Audio | input: RCA×4; output: RCA×1 |
| Alarm mode | Disk full alarm; motion detection alarm; video loss alarm |
| Recording mode | Timing / Motion detection |
| Network port | 100 M RJ-45 |
| HDD | 1× 2000G |
| DVD-RW | Support external USB DVD-RW |
| PTZ port | RS-485 |
| Remote control | Supported |
| Mouse | Supported |
| USB port | 2×host 2.0 |
| Power supply | 12V/3A |
| Operating temperature | -10℃—+50℃ |
| Operating humidity | 10％—90％ |
| Gross weight | 3kgs with package |
| Dimension | 338mm(L)×250mm(W)×65mm(H) |
