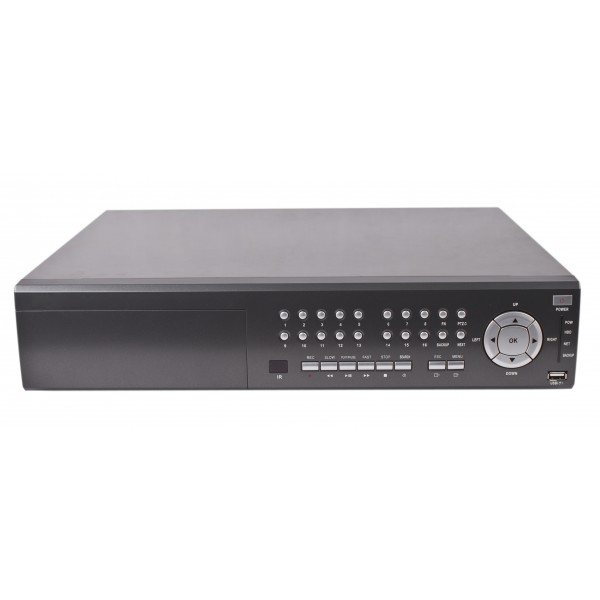

H.264 Digital video recoder
SKU: D-1216D1.- 16 Channel H.264 DVR
- Video System—-NTSC / PAL
- Video Input/Output(BNC) —-16CH BNC input/2CH BNC output
- Audio Input/Output —-16CH audio input,1CH audio output(RCA)
Product Description
| Video Compression Format | H.264 | |
| Video System | NTSC / PAL | |
| Video Input/Output(BNC) | 16CH BNC input/2CH BNC output | |
| Audio Input/Output | 16CH audio input,1CH audio output(RCA) | |
| Maximum Recording Rate(CIF) | D1:704*480 pixels with 480 IPS <NTSC> /704*576 pixels with 400 IPS <PAL> HD1:704*240 pixels with 480 IPS <NTSC> /704*288 pixels with 400 IPS <PAL> CIF:352*240 pixels with 480 IPS <NTSC> /352*288 pixels with 400 IPS <PAL> QCIF:176*120 pixels with 480 IPS <NTSC> /176*144 pixels with 400 IPS <PAL> | |
| Image Quality Setting | Supper Best,Well,Good,Medium,Normal and Bad | |
| Hard Disk Storage | Support four SATA HDD,unlimited for the capacity | |
| Loop out | Support 16CH BNC Loop out | |
| Alarm Input/Output | 16CH alarm input,2CH alarm output | |
| Multiplex Operation | Live display/record/playback/backup/network transmit | |
| Recording Mode | Auto/Manual/Timer/Motion/Alarm | |
| Playback Mode | Multiple slow and rapid play speeds,manual and single-frame play modes,and support of drag the sliding bar to set. | |
| Backup Device | USB flash disk/USB remove HDD/Network/SATA DVD-RW | |
| Pre-alarm Recording | Recording for 10 seconds before alarming | |
| Network Protocol | TCP/IP,DHCP,DNS,DDNS,PPPoE,FTP,UPNP,E-mail,IP rights and NTP | |
| Ethernet remote view | Support remote surveillance up to 10 users simultaneously | |
| Log record function | YES | |
| VGA Interface | YES ,support VGA and BNC can work at the same time,HDMI OPTIONAL | |
| USB Mouse & IR Remote control | YES | |
| Video Loss Detection | YES | |
| Video Adjustable | Hue /Saturation /Contrast /Brightness adjust | |
| PTZ Control | YES,built-in RS485 port,support 17 kinds protocols | |
| RS232 interface | YES,built-in RS-232 port | |
| Power Source | DC 12V | |
| Size(mm) | 430(W) x 97(H) x 370(D) | |
