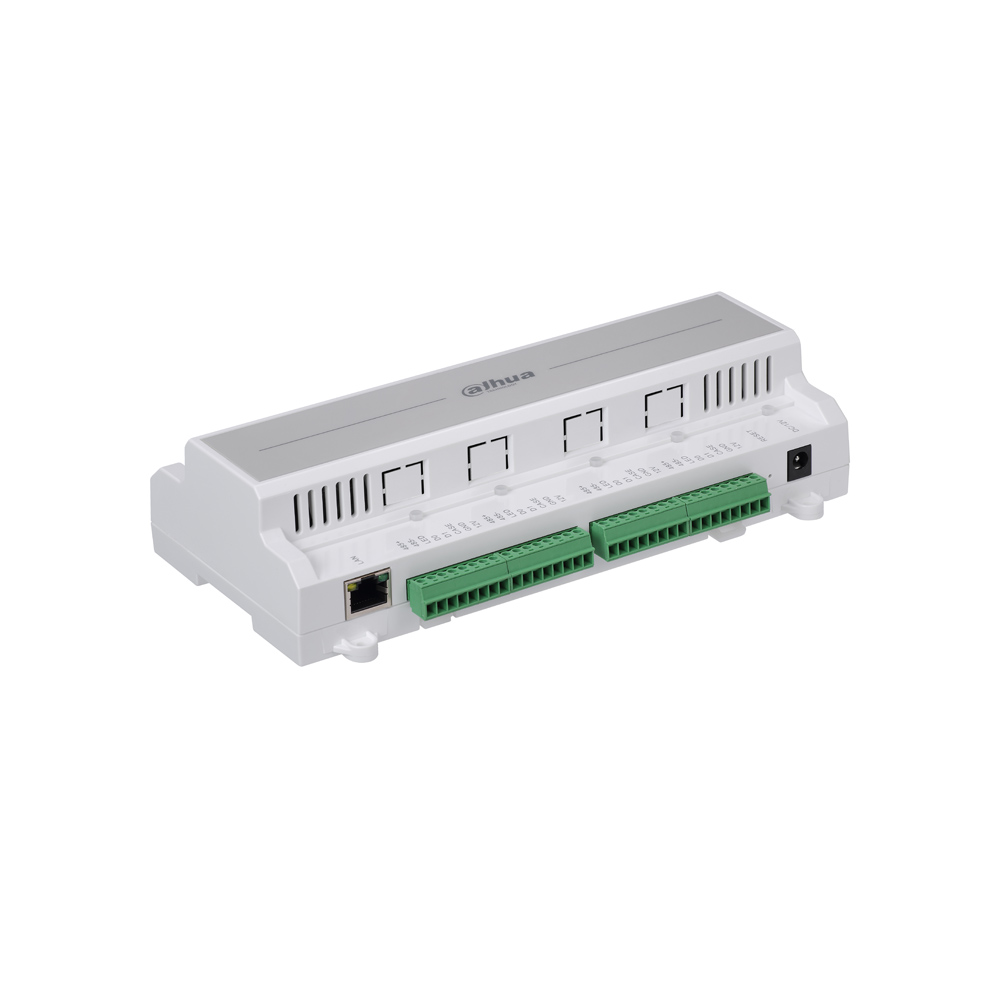

Four Door Access Controller ASC1204B
SKU: ASC1204B.>Support 100,000 valid cards & 300,000 records
>Support multiple cards
>Support card, password, fingerprint and combination
>TCP/IP or RS-485 interface to PC
>Wiegand or RS-485 interface to readers(2/4 door)
>Door time out alarm, intrusion alarm, duress alarm and tamper alarm
>Anti-pass back, multi-door interlock, multi-card open
>Support 128 efficient time and holiday schedules
>Watch dog function ensure device free from halting
>Surface mounted installation
Product Description
| Model | ASC1204B |
| System | |
| Main Processor | 32 Bit |
| Memory | 16M(32M External) |
| Input/Output Ports | |
| Input | Inputs x 9 ( door sensor x 4, exit button x 4, alarm x 1) |
| Output | Relay x 5(door lock x 4, alarm x 1 ) |
| Reader | Reader x 4 |
| Capacity | |
| Cardholders/Events | 100,000/150,000 |
| Function | |
| User Management | General, VIP, Guest, Patrol, Black list, Force |
| Alarm Function | Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm |
| Schedule Setting | Support 128 groups of schedule, 128 groups of period and 128 groups of holiday period |
| Interface | |
| To PC | RJ45(10/100M)/RS485 |
| To Reader | Wiegand/ RS485 |
| General | |
| RTC | Yes |
| Power Supply | 9-15DC/500mA |
| Working Environment | -30℃-+60℃ |
| Working Humidity | ≤95% |
| Dimension(W×D×H) | 210*98*51mm |
| Weight | 0.5Kg |
