Product Description

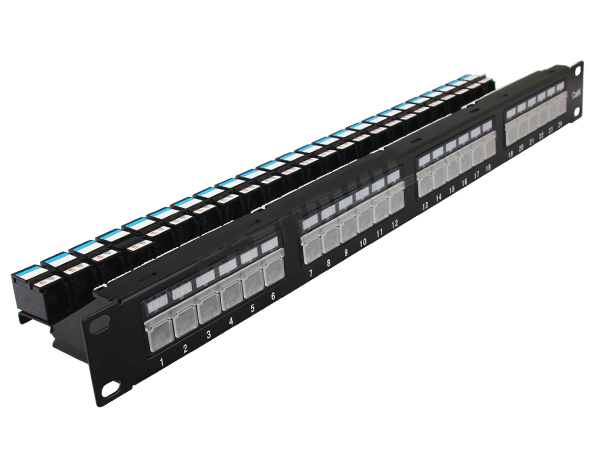

Patch Panel HM-PPG04 is a 24 ports patch panel, Cat.6 UTP type. The structure of each port of this patch panel is same which makes sure that the performance of each port is consistent.

Applications:

 •  Horizontal distribution or equipment termination on long-distance communication;

 •  Interactive termination on merger point;

 •  Multi-user communication jack in working area.

 Feature:

 • Design to mount to any standard 19″ rack or cabinet;

•  Cable management make cable be arranged in good order;

• Space saving ,high-density 1U (24 port );

• l IDC contract material : phosphor bronze with tin plating over nickel;

• 110& krone punch down tools are available;

• Sturdy Aluminum Plate around RJ45 Jacks;

• Available with T568 A .T568 B wiring pattern and meeting the requirement of Cat 6standard;

• Color Coded TIA/EIA 568a (international) and 568b (AT&T Standard) Wiring For Easy Installation;

• Termination accepts 22,24 26 AWG (0.64 ,0.5 and 0.4 )solid wires;

• Metal sheet: Corrosion resistant streets;

• Plastic:fire self extinguish high impact plastic.
