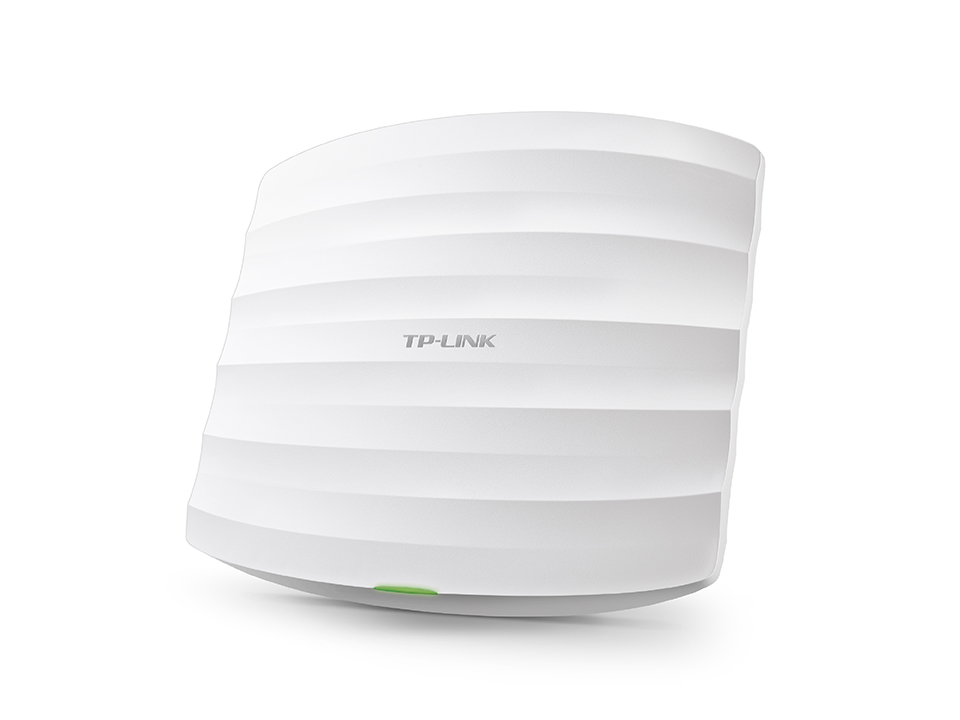

AC1200 Wireless Dual Band Gigabit Ceiling Mount Access Point EAP320

SKU: EAP320.

Speeds of up to 1.2Gbps over concurrent dual band 802.11ac Wi-Fi with MIMO and TurboQAM technologies
Airtime Fairness, Beamforming, and Band Steering Technologies guarantee optimal RF performance for business-level applications
Free EAP Controller Software lets administrators easily manage hundreds of EAPs
Captive portal provides a convenient method for guest authentication
Power over Ethernet (802.3at) support and simple mounting design allow for flexible deployment and convenient installation

1167Mbps wireless data rate for uninterrupted wireless connection
Airtime Fairness, Beamforming and Band Steering technology provide optimal RF performance for best Wi-Fi experience in High-Density environment
Free Controller Software for easy centralized management of hundreds of EAPs
Power over Ethernet（802.3at）Support for convenient and affordable installation
Captive portal provides one convenient method of authentication for WiFi guests
Simple mounting design makes easy to install on any wall or ceiling surface
Rate limit on per SSID to restrict the bandwidth of each client
Load balance ensures large numbers of users have smooth network experiences in high density business networks
Access Control restricts or only allows the client to access the specified network segment
Reboot Schedule enables all the APs to reboot automatically at a specified time
WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN
Multi-SSID divides multiple wireless network for different users
Compatible with 802.11 a/b/g/n/ac products
Adopts Low Smoke Zero Halogen (LSOH) materials for UL2043 compliance
Multiple operating modes including managed AP and standalone AP satisfy different application conditions
Qos function gives video and voice streams higher priority to promote smoother performance for video and voice services

HARDWARE FEATURES
Interface	Gigabit Ethernet (RJ-45) Port 1（Support IEEE802.3at PoE） Console Port 1
Button	Reset
Power Supply	PoE or External 12VDC / 1.5A Power Supply
Power Consumption	13 W
Dimensions ( W x D x H )	8.7 x 7.6 x 1.4 in. (220.5193.536.5mm)
Antenna Type	Internal Omni 2.4GHz: 2* 6dBi 5GHz: 2*7dBi
Mounting	Ceiling /Wall Mounting (Kits included)
Physical Security Lock	Kensington Lock Slot
Watch Dog	Yes

WIRELESS FEATURES
Wireless Standards	IEEE 802.11ac/n/g/b/a
Frequency	2.4GHz and 5GHz
Signal Rate	5GHz:Up to 867Mbps 2.4GHz:Up to 300Mbps
Transmit Power	CE： <20dBm(2.4GHz) <23dBm(5GHz) FCC: <27dBm
Wireless Functions	Multiple SSIDs （Up to 16 SSIDs, 8 for each band） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control （Adjust Transmit Power on dBm） QoS(WMM) Airtime Fairness Beamforming Band Steering Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
Wireless Security	Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK

MANAGEMENT
EAP Controller Software	Yes
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1,v2c
System Logging Local/Remote Syslog	Local/Remote Syslog
Telnet	Yes
Web-based Management	HTTP/HTTPS
CLI (Command Line Interface)	Yes
L3 Management	Yes
Multi-site Management	Yes

OTHERS
Certification	CE, FCC, RoHS
Package Contents	AC1200 Wireless Dual Band Gigabit Access Point EAP320 Power Adapter Mounting Kits Resource CD Installation Guide
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
