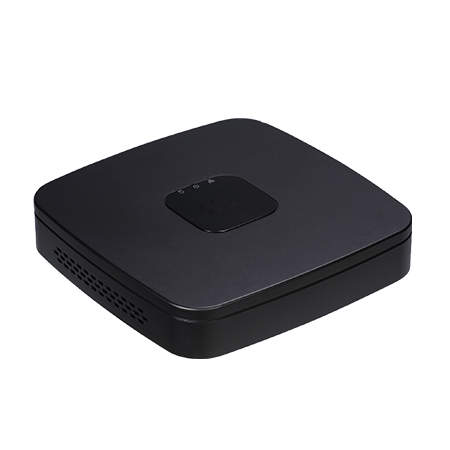

8CH TRIBRID 720P-LITE SMART 1U HDCVI DVR HCVR4108C-S3

SKU: HCVR4108C-S3.

Support HDCVI/Analog/IP Video input
H.264 dual-stream video compression
HCVR4108C-S3: All channel 720P recording
HDMI/VGA simultaneous video output
8 channel synchronous playback, GRID interface & smart search
Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
ONVIF Version 2.4 conformance
Support 1 SATA HDD up to 4TB, 2 USB2.0
3D intelligent positioning with Dahua PTZ dome camera
Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)

Model			DH-HCVR4104C-S3	DH-HCVR4108C-S3
System
Main Processor			Embedded processor
Operating System			Embedded LINUX
Video
Input			4 channel, BNC	8 channel, BNC
Standard		HDCVI	720P HDCVI Camera
		Analog	NTSC/PAL
		IP	Support 2ch 1080P/720P IP Camera
Audio
Input			1 channel, RCA
Output			1 channel, RCA
Two-way Talk			Reuse audio input/output channel 1
Display
Interface			1 HDMI, 1 VGA
Resolution			1920×1080, 1280×1024, 1280×720, 1024×768
Display Split			1/4	1/4/8/9
Privacy Masking			4 rectangular zones (each camera)
OSD			Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/Audio Compression			H.264/G.711
Record Rate	Main Stream:		720P/960H/D1(1~25/30fps)
