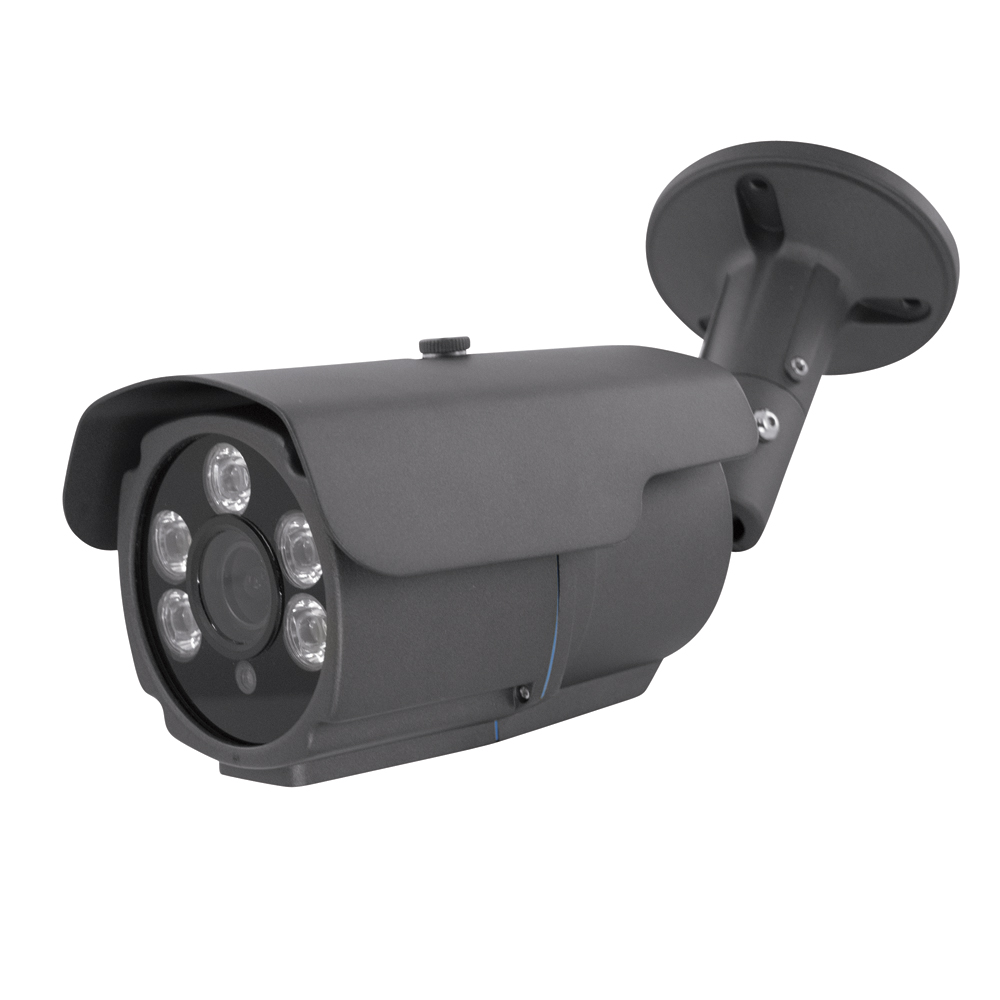

800 TV Lines 960H Motion Activated Flood LED Bullet Camera
SKU: MDC174.- Resolution 800 TVL SONY Effio CCD
- Leds : 2pcs Powerful led lamps
- IR Leds :1pcs Powerful IR leds
- Light range :50 meter
- Lens :2,8-12mm 2,0Mega pixel varifocal lens
Product Description
| Model Number | VCB1740G-LED |
| Image Sensor | 1/3” 960H CCD Effio-E |
| Lens | 2.8-12mm Vari-Focal Lens |
| Horizontal Resolution | 800 TV Lines |
| Effective Pixels | 976 (H) x 494 (V) |
| Flood LED | 3 Motion Activated LED |
| Illumination Range | 165ft |
| IR LED | 2 Array IR LED |
| IR Distance | up to 200ft |
| Min. Illumination | 0.0 Lux |
| Video System | NTSC |
| Video Output | 1.0 Vp-p, 75Ω |
| Gamma Correction | 0.45 |
| BLC | Yes |
| HLC | Yes |
| DNR | Yes |
| ATR | Yes |
| OSD | Yes |
| Operating Temperature | -10°C~+50°C (14°F~122°F) |
| Storage Temperature | -20°C~+60°C (-4°F~140°F) |
| Chasis Material | Aluminum |
| Weather Proof | IP66 |
| Supply Voltage | DC 12V |
| Power Consumption | 2A (Adapter Not Included) |
| Product Dimension | 11.75 x 4.50 x 4.00 in |
| Product Weight | 2.20 lb |
| Unit Dimension | 12.50 x 6.25 x 5.75 in |
| Package Weight | 2.80 lb |
