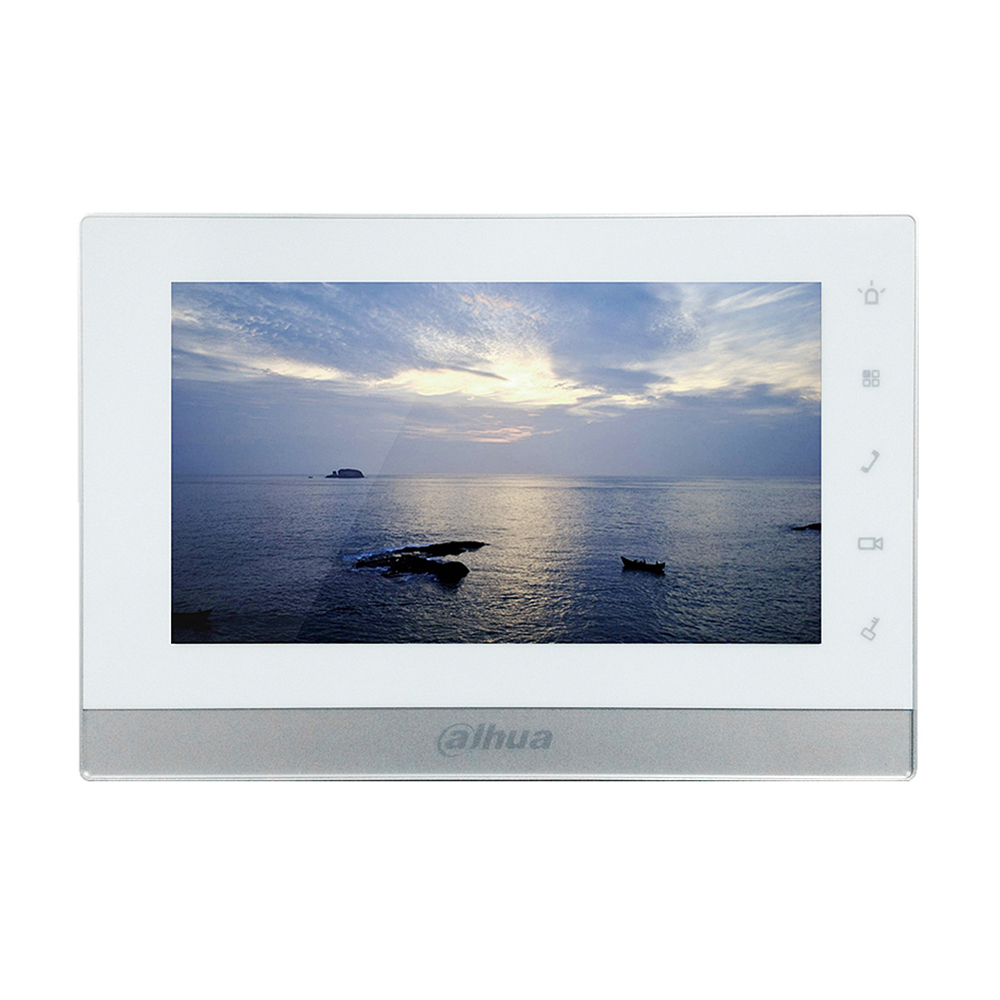

7-inch Color Indoor Monitor VTH1550CH
SKU: VTH1550CH.>Displayer: Color 7-inch TFT LCD, Capacitive touch screen resolution 800×480
>Support 6 channels wire alarm input
>Call among households
>1 channel 10/100Mbps self-adaptive Ethernet
>Support outdoor station and IPC monitor
>Support leave audio and video message
>Support Dahua POE power supply
>Support SD card pluggable
>Surface mounted
Product Description
7-inch Color Indoor Monitor VTH1550CH
| Model | DHI-VTH1550CH | |
| System | Main Processor | Built-in microcontroller |
| Operation System | Embedded LINUX operating system | |
| Video | compression | H.264 |
| Resolution | 800*480 | |
| Audio | Audio Input | All-direction microphone |
| Audio Output | Embedded loudspeaker | |
| Bidirectional Talk | Support bidirectional talk | |
| Display | Size | Color 7-inch TFT LCD |
| Operating modes | input | Mechanical keys(emergency, protection, video talk, monitoring, unlock ), Touch screen technology |
| Alarm | Alarm input | Support 6 channels input |
| Alarm output | Support 1 channel output | |
| Network | Ethernet | 10 M / 100 Mbps adaptive |
| network protocol | TCP/IP | |
| General | Power | DC 10~15V or supply directly by Special switching power |
| Power Consumption | Standby ≤1.5W，work≤7W | |
| work environment | Temperature: -10℃~+60℃ | |
| Humidity: 10~90%RH | ||
| Dimensions | 200mm×126mm×22mm（L*W*T）; | |
| Weight | 0.8Kg； | |
