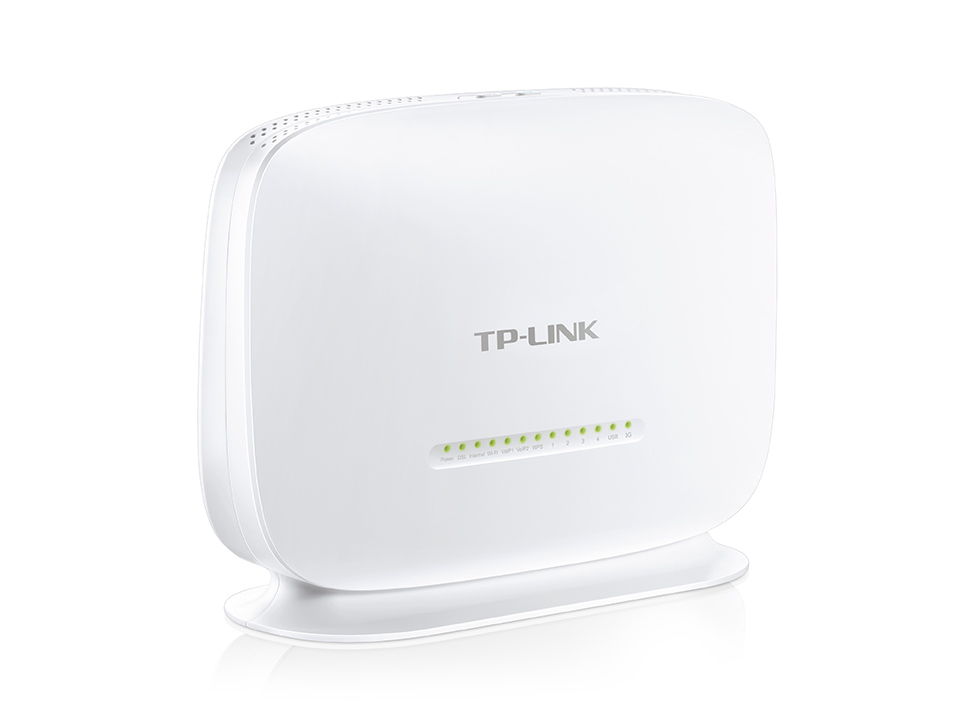

300Mbps Wireless N VoIP VDSL/ADSL Modem Router TD-VG5612
SKU: TD-VG5612.- Fast Broadband Speeds – Up to 100Mbps broadband speeds, ideal for smooth streaming media and online gaming
- Cost-Effective VoIP – Supports up to eight VoIP accounts and numerous call features, keeping phone costs low
- Versatile USB Sharing – USB 2.0 port for shared storage, media, and voicemail
- EWAN Connection – Available LAN/WAN port offers broadband connectivity option for cable/fiber modem
Product Description
What This Product Does
This 300Mbps Wireless N VoIP VDSL/ADSL Modem Router, TD-VG5612, is a great solution for your home network. It not only provides fast wireless and wired connections for your home, but also provides cost-effective VoIP services. Additionally, with a USB 2.0 port, you can easily access, store and share files, music, videos.
Fast Broadband Connection
The TD-VG5612 supports VDSL2 technology and backward compatible with ADSL2+/ADSL2/ADSL, featuring high broadband speeds of up to 100Mbps. It provides you stable fast Wi-Fi and wired connections, ideal for online chatting, media streaming and Internet gaming.
Cost-Effective VoIP
Users can direct connect traditional telephone to the TD-VG5612’s Phone ports, and get cost-effective VoIP service. The TD-VG5612 features numerous call features such as caller ID, call waiting, call holding, call forwarding, 3-way conference calls and voicemail functions.
Easy Sharing with USB 2.0 Port
Connecting an external drive to the USB 2.0 port allows you to easily store, access, and share all of your most important files, media and voicemail. The USB port also supports 3G USB dongle connection.
Available Ethernet WAN Connection as Backup
The integrated modem router TD-VG5612 not only supports DSL connection, but also supports Ethernet WAN connection with the LAN/WAN port. The interchangeable LAN/WAN port can accept connections from fiber modem or cable modem, which means you can change to your preferred Internet Service Provider when necessary.
Parental Control
Allows parents and administrators to establish restricted access policies for children or staff
6000V Lightning Protection
Helps your device to avoid the damage of tough thunderstorm
Easy Setup
Easy Setup Assistant with multi-language support provides quick & hassle-free installation
| HARDWARE FEATURES | |
|---|---|
| Interface | 4 10/100Mbps RJ45 Ports 3 RJ11 Ports 1 USB 2.0 Port |
| Button | 1 Power On/Off Button 1 WPS Button 1 Wi-Fi On/Off Button 1 RESET Button |
| External Power Supply | 12VDC/1.5A |
| IEEE Standards | IEEE 802.3, 802.3u |
| VDSL2 Standards | ITU-T G.993.2 ITU-T G.993.5 (G.vector) ITU-T G.998.4 (G.INP） |
| ADSL Standards | Full-rate ANSI T1.413 Issue 2 ITU-T G.992.1(G.DMT) ITU-T G.992.2(G.Lite) ITU-T G.994.1 (G.hs) ITU-T G.995.1 |
| ADSL2 Standards | ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.4 (G.lite.bis) |
| ADSL2+ Standards | ITU-T G.992.5 |
| Dimensions ( W x D x H ) | 174*60*130mm(6.9*2.4*5.1 in.) |
| Antenna Type | Omni directional, Internal, Printed Antenna |
| Antenna Gain | 2 x 2.6dBi |
| VOIP Standards | SIP (RFC3261)/RTP(RFC1889/3550) ITU-T G.711A/u, G.722, G.729AB, G.726 T.38 pass-through |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11b, 802.11g, 802.11n |
| Frequency | 2.400-2.4835GHz |
| Transmit Power | <20dBm(EIRP) |
| Wireless Security | Support 64/128 bit WEP,WPA/WPA2, WPA-PSK/WPA2-PSK, Wireless MAC Filtering |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | WMM, Bandwidth Control (IP QoS) |
| Security | NAT Firewall SPI Firewall MAC / IP / URL Filtering |
| IPv6 | IPv6 and IPv4 dual stack Supported IPv6 Tunnels: DS-Lite, 6RD, 6 to 4 Supported IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6 |
| Management | Web Based Configuration(HTTP) Remote management Telnet management Command Line Interface SSL for TR-069 SNMP v1/2c Web Based Firmware Upgrade CWMP(TR-069) Diagnostic Tools |
| Port Forwarding | Virtual server, Port Triggering, UPnP, DMZ, Manage Control |
| VPN Pass-Through | PPTP, L2TP, IPSec Pass-through |
| ATM/PPP Protocols | ATM Forum UNI3.1/4.0 PPP over ATM (RFC 2364) PPP over Ethernet (RFC2516) IPoA (RFC1577/2225) PVC – Up to 8 PVCs |
| Advanced Features | Parent Control Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt Dynamic Host Configuration Protocol (DHCP), DHCP relay Network Address Translation (NAT) PVC/Ethernet Port Grouping Static Routing, RIP v1/v2 (optional) DNS Relay, DDNS |
| VOIP Features | Two RJ-11 FXS ports for connecting to regular telephones Call hold, Call transfer, Call internal transfer, Call forward, Warm call, Do not disturb, Anonymous call, Call restriction, Speed dial, etc. USB Voicemail, Caller ID, 3-party conference SIP account – Up to 8 accounts |
| USB Sharing | Storage Sharing FTP Server Media Server |
| IGMP | IGMP snooping V1/2/3, IGMP Multicast |
| OTHERS | |
|---|---|
| Certification | RoHS, RCM |
| Package Contents | TD-VG5612 External Splitter RJ-11 Telephone Cable RJ-45 Ethernet Cable Telephony Feature Guide Quick Installation Guide Resource CD Power Adapter |
| System Requirements | Windows 10/8/7/Vista/XP or Mac OS or Linux-based operating system |
| Environment | Operating Temperature: 0~40 (32~104) Storage Temperature: -40~70 (-40~158) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
