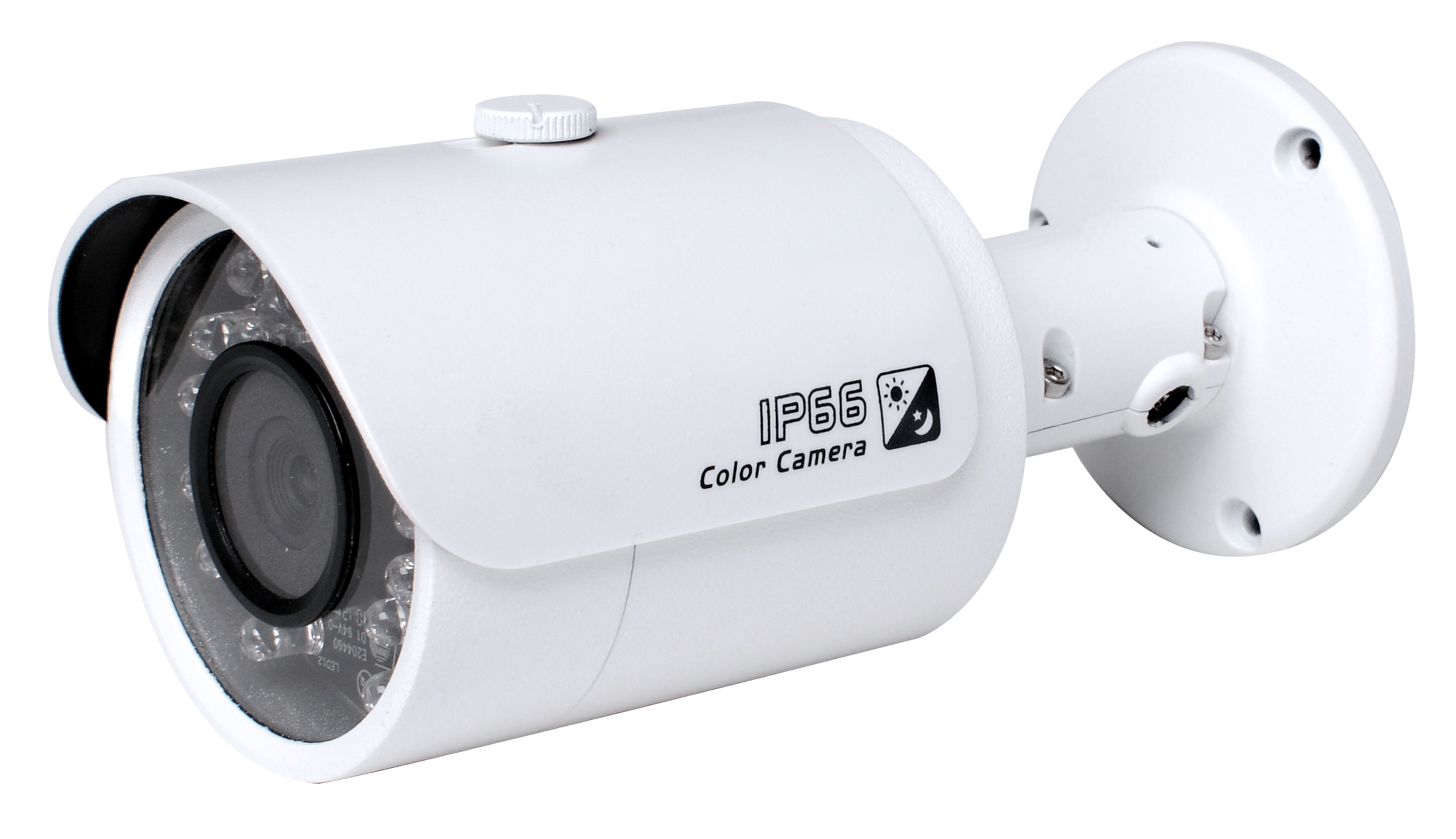

2.4Megapixel 1080P Water-proof HDCVI IR-Bullet Camera
SKU: HAC-HFW2220S.>1/2.8″ 2.4Megapixel CMOS
>25/30fps@1080P, 25/30/50/60fps@720P
>High speed, long distance real-time transmission
>HD and standard definition switchable
>OSD Menu, control over coaxial cable
>DWDR, Day/Night(ICR), AWB, AGC, BLC, 3D-DNR
>6mm fixed lens (3.6mm, 8mm optional)
>Max. IR LEDs length 30m, Smart IR
>IP67, DC12V
Product Description
2.4Megapixel 1080P Water-proof HDCVI IR-Bullet Camera
| Model | DH-HAC-HFW2220SP | DH-HAC-HFW2220SN |
| Camera | ||
| Image Sensor | 1/2.8” 2.4Megapixel CMOS | |
| Effective Pixels | 1984(H)×1225(V) | |
| Electronic Shutter | 1/3s~1/100,000s | |
| Video Frame Rate | 25/30/50/60fps@720P; 25/30fps@1080P | |
| Synchronization | Internal | |
| Min. Illumination | 0.05Lux@F1.2(AGC ON), 0Lux IR on | |
| Video Output | 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch) | |
| Camera Features | ||
| Max. IR LEDs Length | 30m, Smart IR | |
| Day/Night | Auto(ICR) / Color / B/W | |
| Noise Reduction | 2D/3D | |
| OSD Menu | Support | |
| Lens | ||
| Focal length | 6mm (3.6mm, 8mm optional) | |
| Angle of View | H: 53.4º(88º/39º) | |
| Mount Type | M12 | |
| General | ||
| Power Supply | DC12V±10% | |
| Power Consumption | Max 4.8W | |
| Working Environment | -30°C~+60°C / Less than 95%RH (no condensation) | |
| Transmission Distance | Over 500m via 75-3 coaxial cable | |
| Ingress Protection | IP67 | |
| Dimensions(W×D×H) | Φ65mm×154.7mm | |
| Weight | 0.38kg | |
| Material | Metal | |
