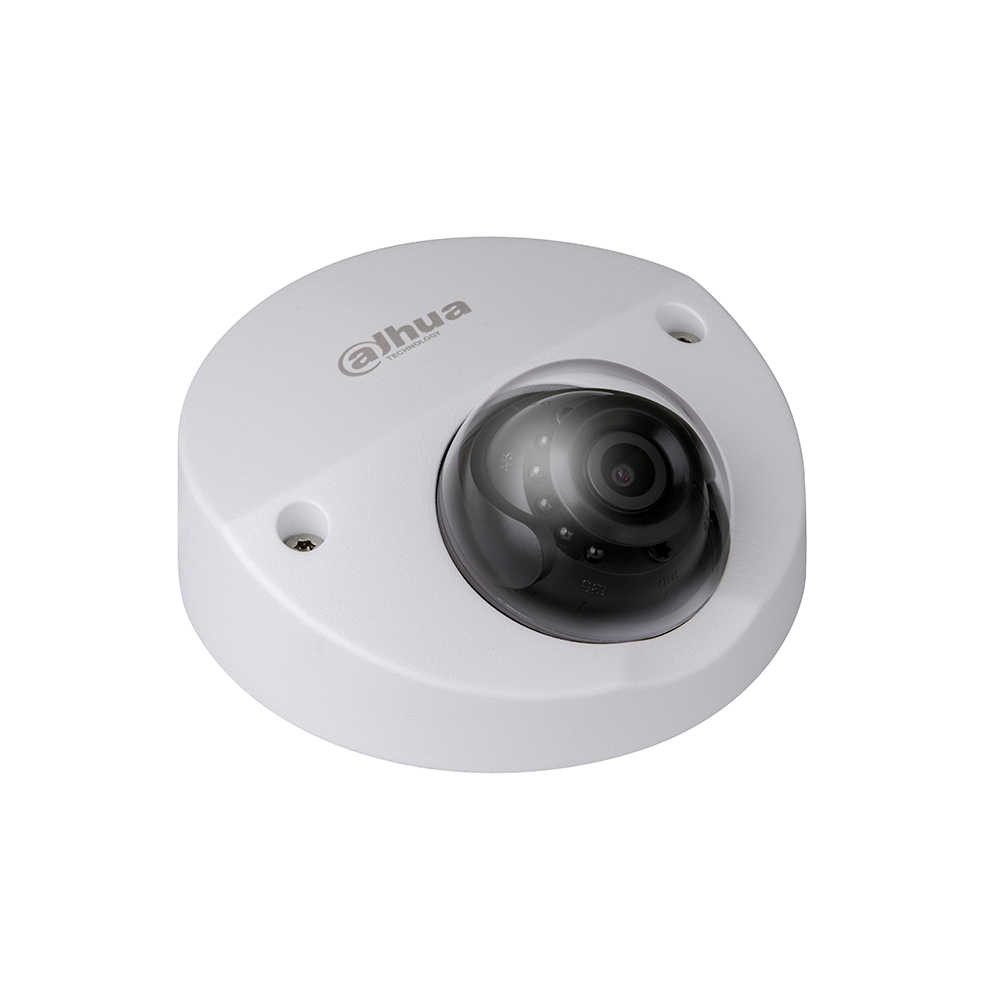

2.4Megapixel 1080P HDCVI Mobile Camera HAC-HDBW2220F-M
SKU: HAC-HDBW2220F-M.>1/2.8″ 2.4Megapixel CMOS
>25/30@1080P, 25/30/50/60fps@720P
>High speed, long distance real-time transmission
>HD video output & Tester out
>OSD Menu, control over coaxial cable, Build-in MIC
>Day/Night(ICR), AWB, AGC, BLC, 3DNR
>3.6mm fixed lens (2.8mm, 6mm optional)
>Max. IR LEDs length 20m, Smart IR
>Aviation connector, Shock-proof
>IP67, IK10, DC12V
Product Description
2.4Megapixel 1080P HDCVI Mobile Camera HAC-HDBW2220F-M
| Model | DH-HAC-HDBW2220FP-M | DH-HAC-HDBW2220FN-M |
| Camera | ||
| Image Sensor | 1/2.8″ 2.4Megapixel CMOS | |
| Effective Pixels | 1984(H)×1225(V) | |
| Electronic Shutter | 1/3s~1/100,000s | |
| Video Frame Rate | 25/30/50/60fps@720P; 25/30fps@1080P | |
| Synchronization | Internal | |
| Mini. Illumination | 0.05Lux/F1.8, 0Lux IR on | |
| Video Output | 1-channel HDCVI high definition video output (Aviation connector) Tester out | |
| Camera Features | ||
| Max. IR LEDs Length | 20m, Smart IR | |
| Day/Night | Auto(ICR) / Color / B/W | |
| Noise Reduction | 2D/3D | |
| OSD Menu | Support | |
| Lens | ||
| Focal Length | 3.6mm (2.8mm, 6mm optional) | |
| Angle of View | H: 88º(106º/55º) | |
| Mount Type | M12 | |
| General | ||
| Power Supply | DC12V±20% | |
| Power Consumption | Max 3.3W | |
| Working Environment | -30°C~+60°C / Less than 95%RH no condensation) | |
| Transmission Distance | Over 800m via 75-3 coaxial cable | |
| Ingress Protection | IP67 & IK10 | |
| Dimensions(W×D×H) | Φ106.3mm×50.3m | |
| Weight | 0.3kg | |
| Material | Metal | |
| Others | Build-in MIC | |
