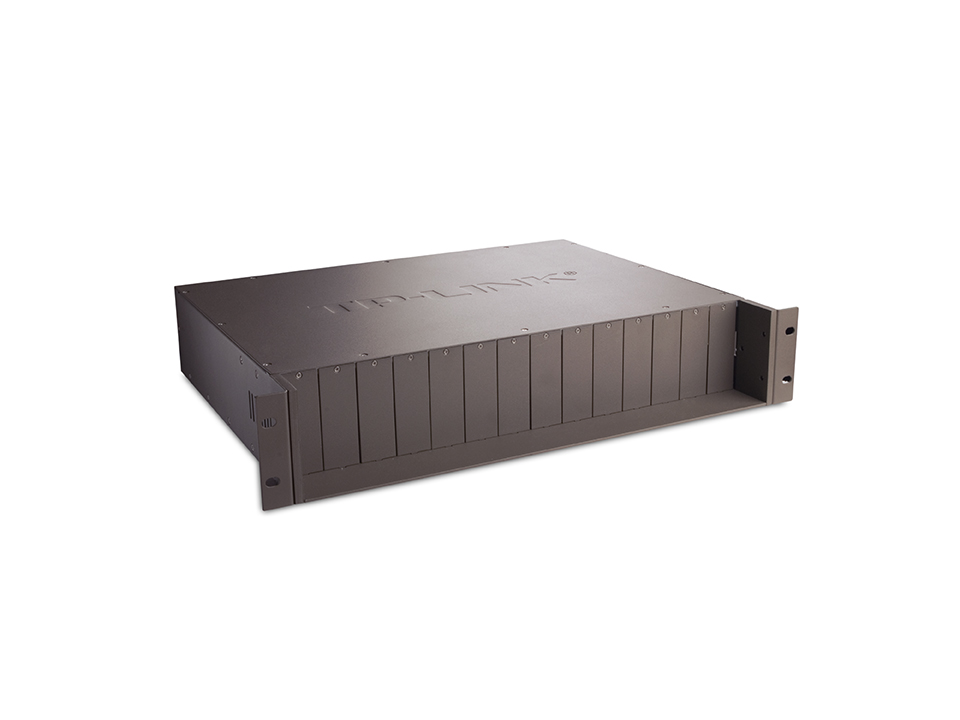

14-Slot Rackmount Chassis TL-MC1400
SKU: TL-MC1400.- 14 bays to house up to 14 media converters
- Optional redundant power supply to ensure non-stop reliable operation
- Hot-Swappable; easy & quick replacement of converter and power supply
- Mounted two cooling fans for better ventilation
Product Description
- 14 bays to house up to 14 media converters
- Standard 19-inch rack-mountable with 2U height
- Optional redundant power supply to ensure non-stop reliable operation
- Provides hot-swapping of media converters and redundant power supplies
- Two cooling fans (internal) mounted at the rear panel for system cooling
- Media converter power isolation for electrical isolation from each bay
- Offers over-voltage and over-current protections
- For TP-LINK Media Converters, TL-MC1400 supports MCXXX ver:2.0 and above, not ver:1.0.”
| HARDWARE FEATURES | |
|---|---|
| Fan Quantity | 2 |
| MEDIA CONVERTER & MODULE | |
|---|---|
| AC Power Supply | Input: 100-240V~50/60Hz 3.0A(Max) Output:+9.5VDC, 9.5A(Max) Vripple: ≤50mv Noise: ≤100mv |
| Dimensions (W*D*H) | 19.0*14.1*3.4in.(482*358*86) Standard 19-Inch, 2U height |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity:5%~90% non-condensing |
